Wall Mounted EV Charger / AC 11kW (3P 16A)
Wall Mounted EV Charger
WALLMOUNTED EV CHARGER - AC 11KW (3P 16A)
Aiden EV charger provide a simple yet reliable solution for your EV charger needs. Our charger can be used in homes, offices, hotels, and so on.
Aiden EV Charger type Wall Mount AC is an EV Charger with an AC voltage input that can be installed on a wall or EV Charger pole. The Wall Mount type Aiden EV Charger is equipped with a Type 2 output socket which is commonly used for various electric cars.
Aiden EV Charger type Wall Mount has features that you will love such as :
- Simple and elegant design

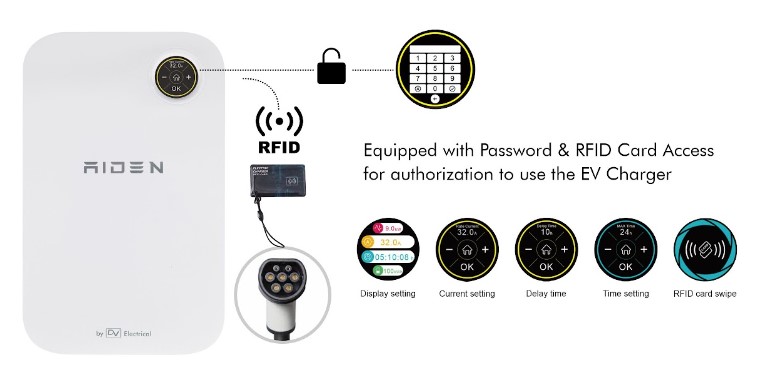

- RFID and Password for use authorization
- Easy-to-understand current setting, charging time & booking, power usage measurement and abnormal error display
- Leakage protection with RCD Type A+6mA DC
- Protection against short circuit, over voltage, over current, over heat
| Type | : WB-20C-11 |
|---|---|
| Phasa | : 3P |
| Input Voltage | : 400VAC |
| Output Current Max | : 16A |
| Output Power Max | : 11000W (11kW) |
| Output Socket Type | : Type 2 (Mennekes); SAE J1772; IEC62196-2 |
| Charging Cable Length | : 5mtr |
| Current Leakage Protection | : RCD Type A+6mA DC |
| Rating IK & IP | : IK10 & IP65 |
| Interface | : LED Indicator + LCD Touch Screen + RFID Card |
| Fitur | : - Adjustable Current |
| : - Inteligent Power Adjuster | |
| : - Metering | |
| : - Delay & Time Charging Setting |
Aiden EV Charger Compatible with All EV Brand with Type 2 Socket
(Adapters Required for Some Brand)
